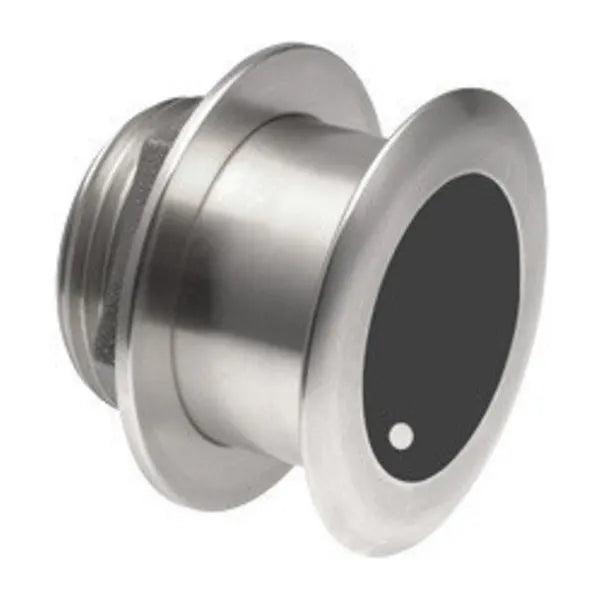

Airmar SS175HW
Sale price
$2,466.00
Regular price $3,099.00
Step up to 1 kW without a fairing block with this flush-mounted stainless-steel housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.
An excellent choice for all hull types including aluminum, this 8-pin transducer has a depth of 600 feet; an operating frequency of 150-250 kHz; a beamwidth of 25 degrees; and a 16 to 24 degree deadrise.
Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
| General | |
|---|---|
| Transducer frequency | 150-240 kHz |
| Transducer power | 1 kW |
| Transducer beamwidth | 25 |
| Transducer maximum depth | 600 ft. |
| Transducer cable length | 39 ft. |
| Transducer depth/speed/temperature | Depth and Temperature |
| Transducer number of pins | 8 |
| Transducer supported deadrise/transom angles | 16-24 degree deadrise |
Compatible Devices
GPSMAP® 557xs (Without Transducer), Australia and New Zealand
GPSMAP® 7416xsv
GPSMAP® 820xs with ClearVü Transducer
GSD™ 25 Advanced Sonar Module
GPSMAP® 922xs
GPSMAP® 722xs
GPSMAP® 751xs, Australia and New Zealand
