Class B Compact Drive Unit for GHP 12
Sale price
$2,439.00
Regular price $2,999.00

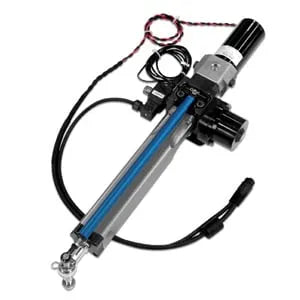

The Class B Compact Drive Unit works with the GHP™ 12 marine autopilot system to control your sailboat's steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.
Specs:
Drive Unit Type: Integrated Hydraulic linear
Stroke Length: 254 mm
Maximum Thrust: 730 kg
Dimensions, WxHxD (centered): 810 x 120 x 225 mm
Supply Voltage: 10V to 30V (regulated to 12V by the ECU)
Average Clutch Current at 12V: 1 Amp
Average Motor Current at 12V: 2-4 Amps
Operating Temperature: -15° C to 50° C
