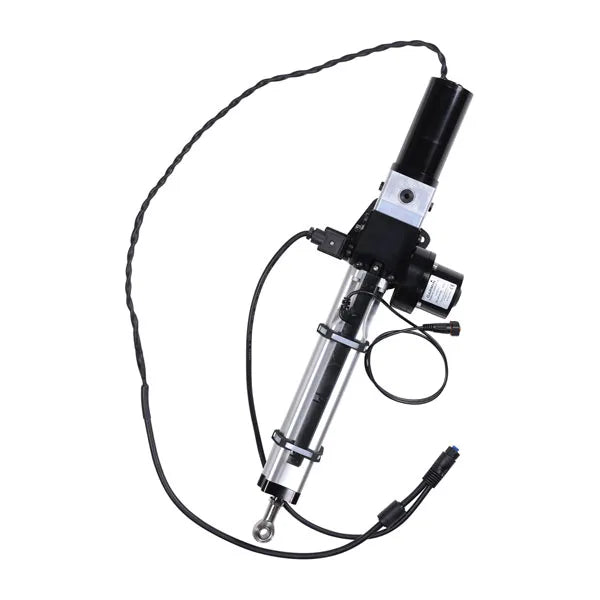

Class B Compact v2 Drive Unit
Sale price
$2,830.00
Regular price $3,499.00
Skip to product information
Class B Compact v2 Drive Unit
Sale price
$2,830.00
Regular price $3,499.00
The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 24 tons (48,400 lbs) of displacement.
Specs:
| Dimensions (WxHxD, centred) | 810 x 120 x 225 mm (31.9″ x 4.6″ x 8.9″) |
|---|---|
| Drive Unit Type | Integrated hydraulic linear |
| Stroke length | 254 mm (10″) |
| Maximum thrust | 730 kg (1.610 lbs) |
| Supply voltage | 10V to 30V (regulated to 12V by the ECU) |
| Average clutch current at 12V | 1 Amp |
| Average motor current at 12V | 2-4 Amps |
| Operating temperature | -15° C to 50° C |
