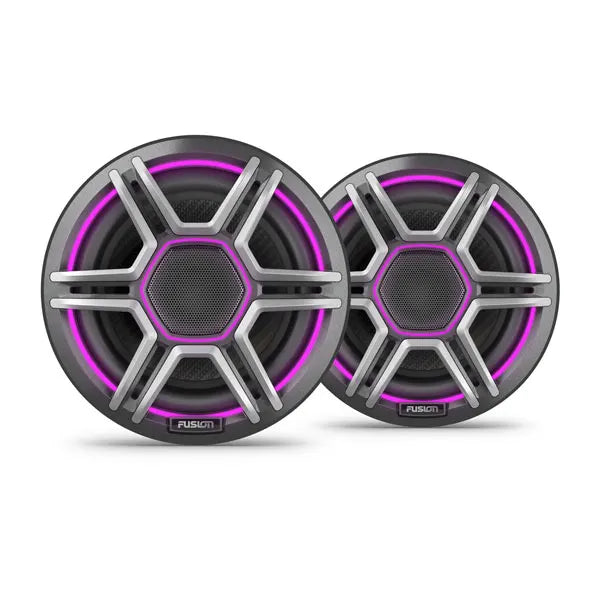

Fusion Apollo™ Speakers, 6.5" LED Marine Speakers with Sports Grey Grilles
Fusion Apollo™ Speakers, 6.5" LED Marine Speakers with Sports Grey Grilles
SURRENDER TO THE SOUND
Fusion Apollo coaxial marine speakers deliver immersive, high-fidelity audio on the water and are engineered to withstand harsh marine conditions.
CRYSTAL-CLEAR PREMIUM SOUND QUALITY
INCLUDED INTERCHANGEABLE SPORTS WHITE OR SPORTS GREY GRILLES
MATCH THE MOOD WITH DUAL-HUE LED LIGHTING RINGS
AVAILABLE IN 6.5″, 7.7″ AND 8.8″ SIZES
RIGOROUSLY TESTED MARINISED DESIGN
WHAT YOU'LL LOVE
PREMIUM SOUND
Enjoy immersive audio at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.
LED LIGHTS
Showcase your boat with dual-hue LED lighting rings that provide a unique look through the distinct hexagonal tweeters. Choose from a broad range of colors to match the mood or music.
INTERCHANGEABLE GRILLES
Complete your speakers with the included sports white or sports grey interchangeable grilles. For more protection, purchase the shielded grille (also available in grey or white).
Made for life on the water
INTEGRATE
FUSION® AUDIO SYSTEM
Control your onboard entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app.
SYSTEM INTEGRATION
Pair your speakers with Fusion® head units and amplifiers (sold separately) for the optimal listening experience with minimal distortion.
MARINISED CONNECTORS
Embedded water-resistant marinised connectors simplify the design and make installation easy; they also meet ABYC requirements.
FUNCTIONAL
SPEAKER GRILLES
All speaker grilles accent the hexagonal tweeter’s anodised mesh cover and complement the dual-hue LED lighting.
Easy install
The grilles are simple to install without tools and don’t have screws for a seamless look and finish.
DURABLE
Fusion Apollo speakers offer a superior level of durability and are built to withstand abuse in harsh marine environments (in accordance with IP66/IP67 rating and ISO 12216 standards).
Specs:
General |
|
| Sizes | 6.5″/7.7″/8.8″ |
|---|---|
| Color | Sports White or Sports Gray |
| Physical dimensions (Diameter) | 6.5″: 176 mm (6.93″) 7.7″: 196 mm (7.72″) 8.8″: 224 mm (8.82″) |
| Physical dimensions (Depth) | 6.5″: 103.1 mm (4.06″) 7.7″: 113.2 (4.46″) 8.8″: 134.1 (5.28″) |
| Weight | 6.5 kg (″ lbs) 7.7 kg (″ lbs) 8.8 kg (″ lbs) |
| Water and dust rating | IP66/IP67 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5″: 75 W 100 W 8.8″: 130 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5″: 90 dB 7.7″/8.8″: 91 dB |
| Frequency response (+/- 3 dB) | 6.5″: 70 Hz-22 kHz 7.7″: 60 Hz-22 kHz 8.8″: 50 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5″: 25-150 W/Channel 7.7″: 30-200 W/Channel 8.8″: 40-260 W/Channel |
| LED lighting | Yes - CRGBW (5 colours) |
| LED supply voltage | 10.8-16 VDC |
| LED Load Current @ 14.4 VDC (max) | 6.5″: 130 mA per colour, per speaker 7.7″: 140 mA per colour, per speaker 8.8″: 180mA per colour, per speaker |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| Cone material | CURV® Cone Technology with rubber surround |
| Tweeter type | Silk Dome |
| Tweeter size | 25 mm (16.5) 25 mm (17.7) 8.8″: 32 mm (1.25″) |
| Warranty | 3 years |
Electrical features |
|
| Compass safe distance | 6.5″: 280 cm (9.19 ft) 7.7″: 300 cm (9.84 ft) 8.8″: 315 cm (10.33 ft) |
|---|---|
Connections |
|
| Speaker connections | 150 mm (5.9″) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors 6.3 mm (0.25″) positive and 4.8 mm (0.19″) negative) |
|---|---|
| LED connection | 150 mm (5.9″) water-resistant 6-way connector (6-pin, CRGBW and ground) |
Mounting Dimensions |
|
| Mounting diameter clearance | 6.5″: 136 mm (5.35″) 7.7″: 156 mm (6.14″) 8.8″: 180 mm (7.09″) |
|---|---|
| Mounting depth clearance | 6.5″: 77 mm (3.03″ ) 7.7″: 86 mm (3.39″) 8.8″: 105 mm (4.13″) |
| Frontal grille protrusion | 6.5″: 30 mm (1.18″) 7.7″: 32 mm (1.26″) 8.8″: 33 mm (1.30″) |
In the box:
- Pair of speakers with sports white or sports grey grilles (based on what you select)
- Pair of audio cables with water-resistant two-way connectors
- Pair of LED cables with water-resistant six-way connectors
- Mounting screws
- Documentation
