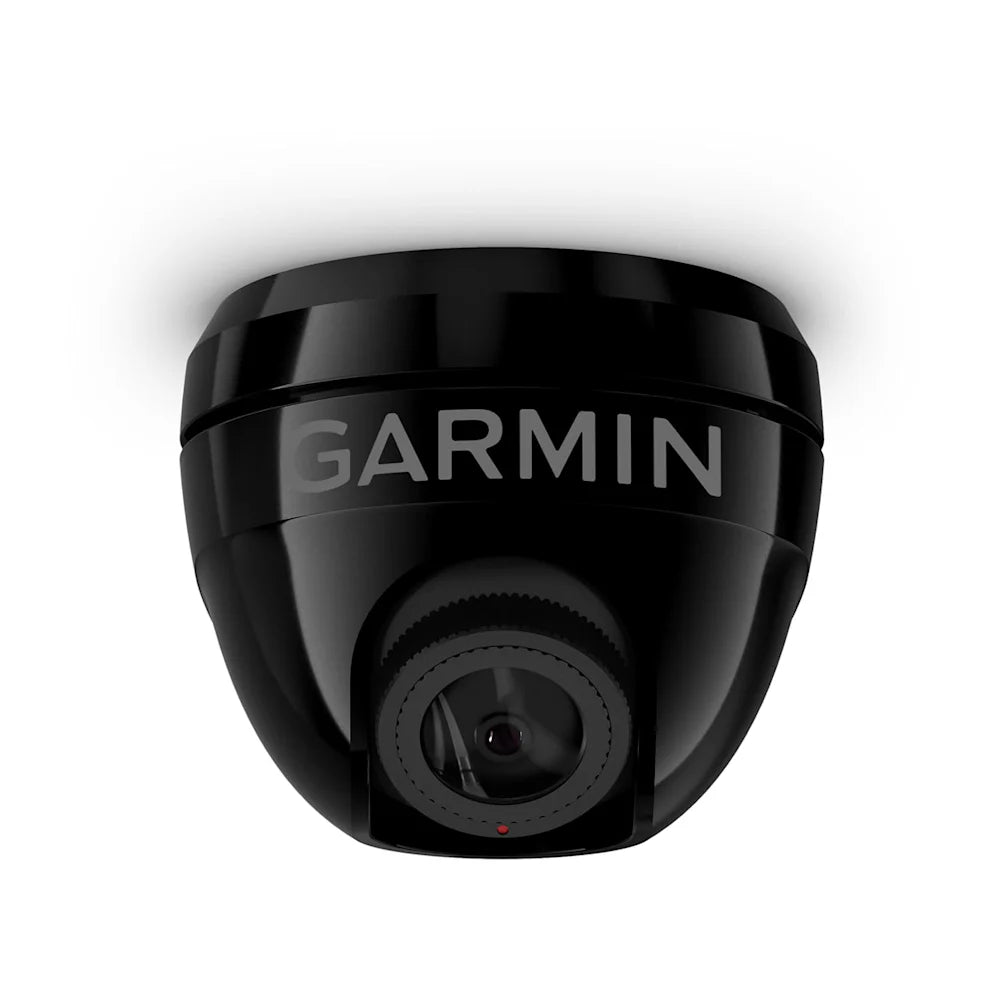

GC™ 245 Surface Mount Camera, Black
GC™ 245 Surface Mount Camera, Black
BRING VISION TO YOUR HELM
Now there’s a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 Surface Mount Camera.
DISTANCE MARKERS SPECIFIC TO YOUR BOAT AND USER-DEFINED GUIDANCE LINES
1080P HIGH-RESOLUTION OUTPUT1
AVAILABLE IN SLEEK BLACK OR WHITE FINISH
SEE CAMERA FEEDS IN FISHEYE OR STANDARD VIEW; BIRDSEYE VIEW ALSO AVAILABLE
FULL INTEGRATION ON THE GARMIN MARINE NETWORK OR GARMIN BLUENET™ NETWORK
WHAT YOU'LL LOVE
GUIDANCE LINES
Set up your own guidance lines for more confidence avoiding obstacles in the marina.
DISTANCE MARKERS
Use distance markers (requires professional installation and calibration) so you know how far away you are from objects.
TWO MOUNTING OPTIONS
Installation is simple, and the camera can be mounted with the dome up or down.
THREE CAMERA VIEWS
Get the right perspective with FishEye and standard views with impressive low-light performance; GC 245 is also available with BirdsEye camera view (requires professional installation and calibration).
MULTIPLE CAMERA FEEDS
See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.
SEE WHAT YOU WANT
Take a closer look with digital zoom, or get a different perspective with digital pan.
Specs:
- Unit dimensions: 6.1 x 6.1 x 5.1 cm (2.4″ x 2.4″ x 2.2″)
- Weight: 92g (3.25 oz)
- Hardwire power: 12V/24V
- Operating current: 300 mA at 12VDC; 200 mA at 24VDC
- Power consumption: 4.5 W
- Connection to chartplotter: IP
- Versatile mounting options: yes (ball-up or ball-down)
- Rugged housing: yes
- Setup: plug-and-play
- Water rating: IPX7
- Video resolution: 1920 x 1080 pixels*
- Video output: H.264 over GMN and BlueNet™
- Images: Standard and reverse
- Selectable views: FishEye, standard, BirdsEye (OEM calilbrated)
- Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
- Viewing angle (H/V): 160°H/90°V
- Operating temperature: -20°C to +60°C
- Scanning system: progressive scan
- Day/night operation: RGB mode full-time
*1080p resolution available on select chartplotters only
In the box:
- GC 245 surface-mount camera
- GVA 10 with integrated power and network cables
- Network adapter cable (500 mm)
- Video coaxial cable (8 m)
- Mounting hardware
- Documentation
