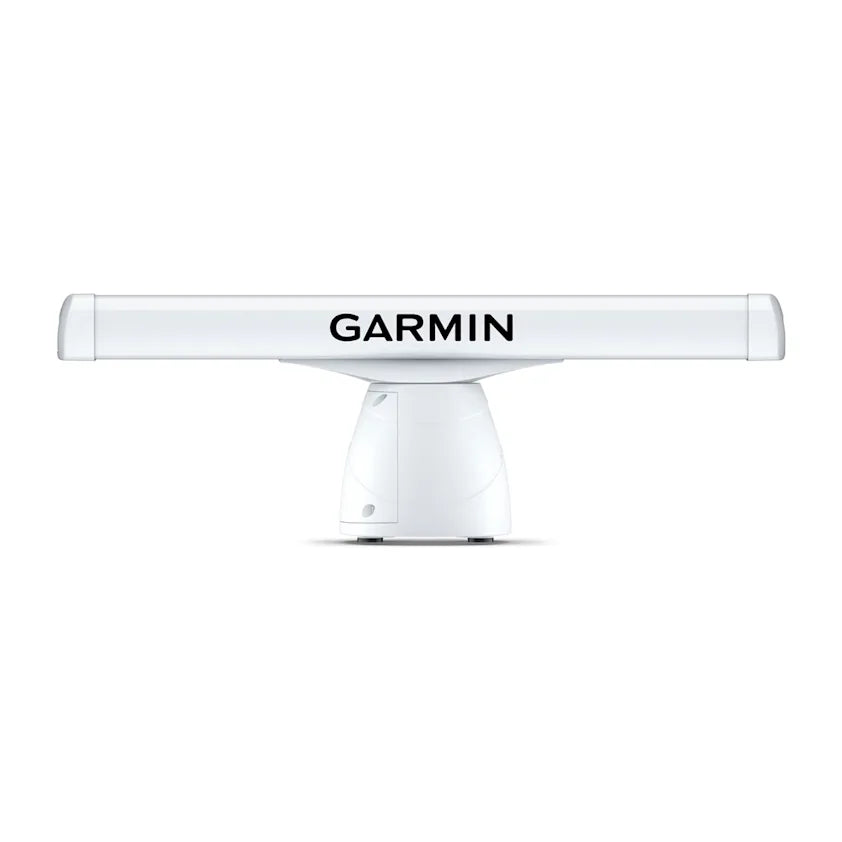

GMR™ 2534 xHD3 Open Array Radar and Pedestal
Sale price
$13,636.00
Regular price $14,999.00
Skip to product information
GMR™ 2534 xHD3 Open Array Radar and Pedestal
Sale price
$13,636.00
Regular price $14,999.00
SCAN WITH THE MAGNETRON POWER OF GARMIN OPEN-ARRAY RADAR
Combining high-definition imaging with the latest Garmin platform technology, these robust 4’ and 6’ open-array radars offer superior weather, obstacle and traffic detection for mariners cruising or fishing offshore.
4-, 12- OR 25kW OUTPUT, UP TO 96-NAUTICAL MILE RANGE
SCAN AVERAGING TECHNOLOGY
IMPROVED TARGET-SIZE PROCESSING
SPLIT-SCREEN DUAL-RANGE DISPLAY
100-KNOT COMMERCIAL GRADE WIND RATING1
QUIET OPEN-ARRAY DRIVE MOTOR
specs:
General |
|
| Dimension | 4' array: 1325 x 122 x 170 mm (52.2" x 4.8" x 6.7") 6' array: 1938 x 122 x 170 mm (76.5" x 4.8" x 6.7") Pedestal: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4") |
|---|---|
| Weight |
4' array and pedestal: 28.4 kg |
| Water rating | IPX6 |
| Max Wind Load | 100kt |
| Antenna Length | 4' array: 48" (122 cm) 6' array: 72" (183 cm) |
| Rotation speed (RPM) | 24 and 48 rpm |
| Beam width | 4' array: 1.8° horizontal, 23° vertical 6' array: 1.1° horizontal, 23° vertical |
| Maximum range | 96 nm |
| Minimum range | 20 meters |
| Radar type | Open-array |
Electrical Features |
|
| Power Input | 10-32 V DC |
|---|---|
| Power Consumption (standby) | 18 W |
| Typical power consumption, transmitting (normal mode) | 70 W |
| Transmit power | 25 kW |
Radar Features |
|
| Dual range | |
|---|---|
| Overlay | |
| Dual radar support | |
| Auto Bird Gain | |
| Auto Gain | Dynamic |
| MARPA target tracking | yes (requires heading sensor, sold separately) |
| Echo Trails | True |
| Programmable antenna parking | |
| Target size | |
| Scan averaging | |
in the box:
- GMR xHD3 25 kW open array radar with 4’ or 6’ antenna (depending on model selected)
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Voltage converter
- Mounting hardware kit and template
- Installation instructions
