Garmin GSD™ 28 Sonar Module - 010-02797-00
Garmin GSD™ 28 Sonar Module - 010-02797-00

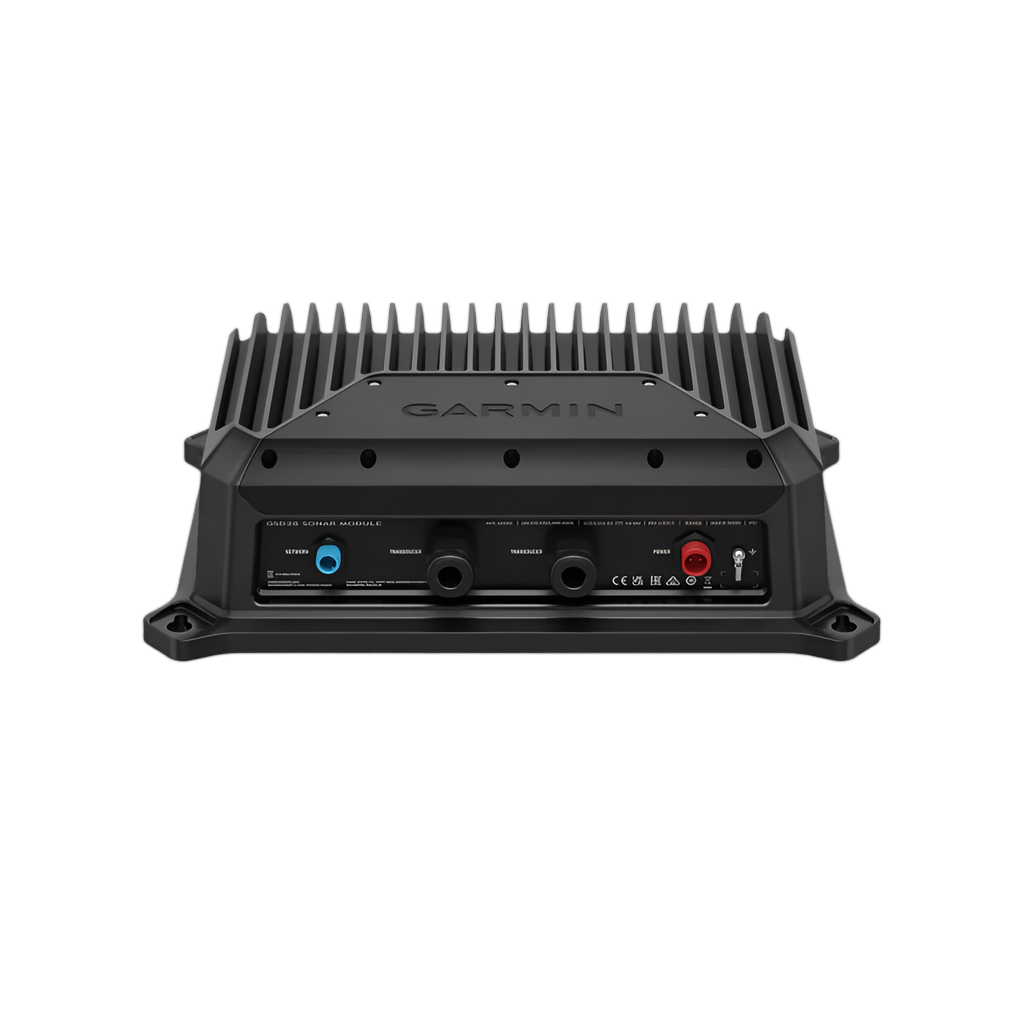

GSD™ 28 Sonar Module
PART NUMBER010-02797-00
THE DEPTHS. REVEALED.
See what’s down there. Catch what’s down there. Take your sport fishing to extreme depths with a high-powered sonar module with the features you need to improve your chances for success.
ENGINEERED FOR OFFSHORE SPORT FISHING
SEE SONAR FASTER WITH GARMIN RAPIDRETURN™ TECHNOLOGY
CRISP AND CLEAR FISH TARGETS WITH xCHIRP TECHNOLOGY
EXCELLENT TARGET SEPARATION WITH xCHIRP TECHNOLOGY1
GREATLY REDUCE WAVE AND SWELL FROM BOTTOM RETURNS WITH HEAVE COMPENSATION2
WHAT YOU'LL LOVE
Garmin RAPIDRETURN SONAR
This high-performance technology provides our fastest deep-water scrolling sonar with 2 to 6 times the ping rate1 of our GSD™ 26 sonar. This allows captains to make fast and informed decisions based on what is below their boats.
xCHIRP TECHNOLOGY
Easily distinguish bait from sport fish with our clearest traditional sonar fish arches and excellent target separation. Get smooth bottom returns and precise targeting at extreme depths1.
HEAVE COMPENSATION
When the seas get rough, use the MSC™ 10 external satellite compass (sold separately) to greatly reduce wave and swell from your sonar returns.
SUPERCHARGED SONAR
COMPATIBILITY
TRANSDUCER SUPPORT
This sonar module is compatible with a wide range of Garmin and AIRMAR® transducers (sold separately).
RETROFITTING
The GSD 28 module is ideal for retrofitting to boats with existing bare wire transducers.
PERFORMANCE
SONAR POWER
GSD 28 can output 300 watts to 3 kW at extreme depths1.
CHIRP SUPPORT
The module supports dual-channel CHIRP (up to 3 kW per channel).
OPERATION RANGE
The GSD 28 sonar module can operate in the 25 to 250 kHz frequency range1.
BUILT TO LAST
GSD 28 is rated for harsh marine environments and water-resistance with an IPX7 rating.
In the box:
- GSD 28
- Power cable
- Garmin BlueNet™ marine network cable (1,8 m/6 ft) with legacy network adapter
- Field installable adapter kit for the Garmin BlueNet network
- Mounting hardware
- Documentation
Specifications:
https://www.garmin.com/en-AU/p/880646#specs
