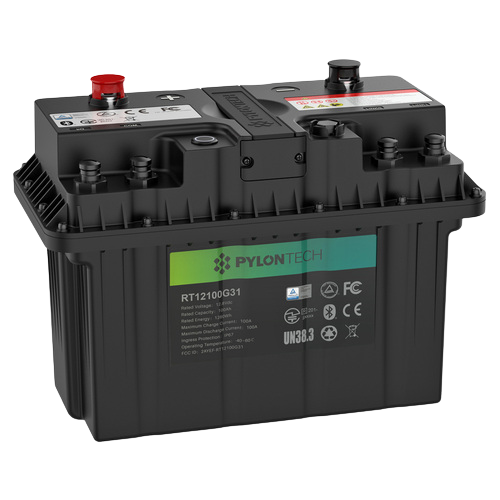

Pylontech IP67 | 12V 100Ah | Lithium Iron Battery LifePO4 | RT12100G31
Sale price
$1,155.00
Regular price $1,210.00
Skip to product information
Pylontech IP67 | 12V 100Ah | Lithium Iron Battery LifePO4 | RT12100G31
Sale price
$1,155.00
Regular price $1,210.00
Pylontech RT12100 12.8V 100Ah 1280Wh Lithium Iron Phosphate (LiFePO4) IP67 Battery with RS485 / CAN / Bluetooth and Dry Contact Communications. Connect up to 4 in series and 4 in parallel for 48V 400Ah.
RT12100G31 GENERAL INFORMATION |
|
| Nominal Voltage | 12.8V |
| Rated Capacity | 100Ah |
| Capacity | 1280Wh |
| Dimensions | 325mm x 173.5mm x 226mm |
| Gross Weight | 13KG |
| IP Rating | IP67 |
| Terminal Connection | M8 Bolt |
ELECTRICAL |
|
| Voltage Range | 10.8 - 14.4V DC |
| Charge Voltage | 14-14.4V DC |
| Continuous Charge Current | 50A |
| Continuous Discharge Current | 100A |
| Peak Current | 200A @ 30 Seconds |
OTHER |
|
| Working Temperature | -20℃ - 60℃ |
| Storage Temperature | -40℃ - 60℃ |
| Humidity Range | 5% - 95% (without condensing) |
| Altitude | < 4000 Metres |
| Cycle life | Up to 6000 cycles |
| Parallel Capable | Up to 4 in Parallel |
| Series Capable | Up to 4 in Series |
| Warranty | 3 Years |
| COMMUNICATIONS | |
| RS485 | 115200bps |
| CAN | 500kbps |
| Bluetooth | BLE5.0 |
| Dry Contactor | 2x Input & 2x Output |
CERTIFICATION |
|
| SAE J930, SAE J1455, UL1973, IEC62619, FCC, CE, Bluetooth SIG, UN38.3 | |
