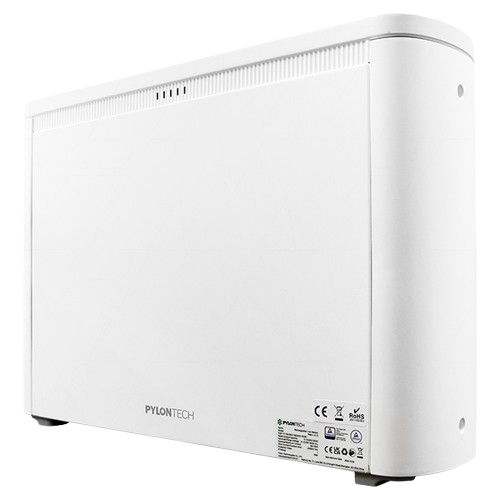

Pylontech Pelio 51.2V 100Ah 5.12kWh Slim-line ESS Module - PELIO-L

  • SKU: Pelio-L 51.2V
RRP: $3,541.66
Our Price : $3,079.70

Includes GST.

Free shipping!
Spend to Free shipping

Fast Free Shipping Over $400

Orders dispatched from our  Australian wide warehouses.
“Excludes some bulky products"

Authorised  Pylontech  Dealer

Expert Technical Support

Honest advice tailored to your setup. Speak with our techs before or after purchase.

Shipping Protection - Safeguard Order Protected

Optional cover for loss, theft, and damage during transit.

Warranty Protection Across All Brands

Up to 10 years coverage on selected products for long-term peace of mind.

Easy Warranty Claims

Submit a warranty request in under 5-mins. Tracked and monitored so you get a fast, clear resolution.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Frequently Bought Together

Description + −

The Pylontech Pelio-L is a modern, slim-profile energy storage solution designed for residential and light commercial applications. Featuring a clean white steel enclosure and flexible installation options—floor or wall-mounted, indoors or outdoors—the Pelio delivers both style and practicality.

With scalable capacity from 5.12kWh to 102.4kWh, a built-in advanced BMS, and full remote monitoring capability, the Pelio system offers dependable performance and long-term reliability for any energy-conscious home or business.

Features & Benefits:

  • Scalable & Modular design for systems 5.12kWh to 102.4kWh (up to 20 modules)
  • Lightweight and Slimline design
  • High Capacity 51.2V 100Ah modules 1C discharge capability
  • Cycle life: >8000 cycles @ 25°C with 95% DoD for daily cyclic applications
  • Advanced BMS with over discharge, over charge, over current and high/low temperature protection to ensure safe operation
  • IP65 Rated and suitable for Indoor or Outdoor installation
  • Floor or Wall mountable to adapt to any location (Wall – 3 modules max. Ground – 4 modules max)
  • 24/7 Wifi Monitoring with simple to use mobile App
  • Monitor your energy production and consumption in real time
  • 15 year design life
  • Compatible with many available Hybrid inverters
  • Meets international standards: IEC62619, IEC63056, IEC62040, IEC62477-1, UL1973, U1642,UL9540A, VDE2510-50, IEC61000-6-2, IEC61000-6-3, UN38.3
  • Clean Energy Council Approved (CEC)

    Warranty: The Pelio-L comes with a standard warranty of 10 years.

    Specifications:

    Chemistry LiFePO4
    System Voltage (V) 51.2V
    System Capacity (kWh) 5.12kWh
    System Capacity (Ah) 100Ah
    Charge Voltage (V) 56.0V – 56.8V
    System Recommended Charge/Discharge (A) 80A (1 cable set)
    System Max. Charge/Discharge (A) – 15 Minutes 100 – 120A (1 cable set)
    System Peak Charge/Discharge (A) – 15 seconds 120 – 200A (1 cable set)
    Discharge Voltage (V) 44.8V – 56.8V
    Depth of Discharge (DoD) 95%
    Communications RS485, CAN
    Operation & Connection WIFI (2.4G), USB2.0
    Protection Class IP65
    Communications RS485 / CAN
    Design Life (Years) 15 years
    Operating Temperature Charge -0°C to +50°C
    Operating Temperature Discharger -10°C to +50°C
    Altitude <4000 metres
    Humidity 5% – 95% RH – No Condensation

We recommend all products be installed by a licensed electrician or qualified technician. Proper installation ensures safety, performance, and protects your warranty.

Specifications + −

View Specification Sheet

Warranties + −

View Warranty PDF
R

Roy Jones

1 review

5 out of 5 stars3 months agoNEW

I ordered a victron MPPT 100/20, their response time and communication was fantastic.
I will be looking forward to dealing them again when my next project comes along.

Ben

Ben

1 review

5 out of 5 stars4 months ago

Ordered a GoodWe EH inverter for our off grid setup. Arrived in a couple of days, well packed, no issues at all with the product.
Received emails at every step, checkout, shipment, tracking and an after sales email to check up if everything went OK and it was the right Inverter for our install.
Very good customer support, Genuine Australian stock - not drop shipped from China. Good to know there are real people available to help if something goes wrong.
No issues at all recommending this company to friends.

Ben Grimmett

Ben Grimmett

1 review

5 out of 5 stars3 months ago

Ordered a GoodWe ES inverter, arrived in a couple of days, free express shipping, well packed, no problems at all

Received Shipment emails, tracking, and after sales email asking if it was the right product, any issues etc.

Pretty good to see genuine Australian companies with top quality support. Not drop shipping Chinese junk, all Australian stock ready to ship.

Andy Baker

Andy Baker

5 out of 5 stars3 months ago

Prices very reasonable to other sellers, always arrives pretty quick, good products. Bought numerous items and will use again

Recently Viewed

FAQ & Help

Which VE.Can BMS cable (Type A or Type B) does my battery need?

Type A and Type B are wired differently and are not interchangeable. Type B: Pylontech US2000/US3000 (original), UP2500, and Energy Eco Semi-Solid State 48V. Type A: Pylontech US2000C/US3000C/UP5000/US5000/US5000B/Force-L, Fusion Lithium, and BYD. Unsure? Ask us before ordering.

What warranty do Pylontech batteries carry?

Pylontech US-series batteries (US2000C, US3000C, US5000, US5000B) sold in Australia carry a 10-year warranty, with a guaranteed minimum capacity of 60% of nominal energy over the warranty period and an energy-throughput cap (around 2.8-3.0MWh per module, cycled at 1C or less). Three conditions matter: register the product with the warranty card at purchase, install and operate per Pylontech's instructions with a compatible inverter, and keep the system logs — since late 2025 Pylontech require log files and a completed claim form, so a claim without them can be refused. Claims run through us and Pylontech's Australian distributor. In addition to your Australian Consumer Law rights. Official documents: https://www.master-instruments.com.au/pages/pylontech-warranties.html
