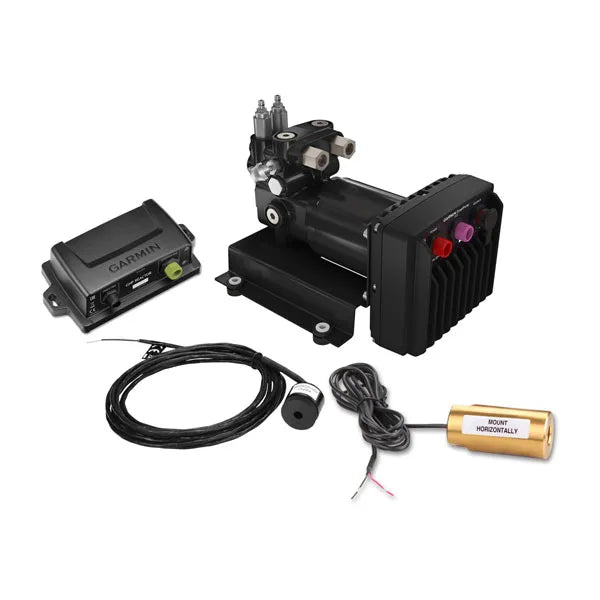

Garmin Reactor™ 40 Hydraulic Corepack with SmartPump v2, Without GHC™ Autopilot Instrument - 010-00705-78

  • SKU: 010-00705-78
Our Price : $5,635.45
RRP : $6,480.77
You save $845.32 (13% OFF)

Includes GST.

Free shipping!
Spend to Free shipping

Fast Free Shipping Over $400

Orders dispatched from our  Australian wide warehouses.
“Excludes some bulky products"

Authorised  Garmin  Dealer

Expert Technical Support

Honest advice tailored to your setup. Speak with our techs before or after purchase.

Shipping Protection - Safeguard Order Protected

Optional cover for loss, theft, and damage during transit.

Warranty Protection Across All Brands

Up to 10 years coverage on selected products for long-term peace of mind.

Easy Warranty Claims

Submit a warranty request in under 5-mins. Tracked and monitored so you get a fast, clear resolution.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Description + −

EVERY CAPTAIN NEEDS A CO-PILOT

Designed for powerboats, this Reactor 40 hydraulic corepack with SmartPump gives you the extra hand you need, so you can explore paradise worry-free.

This Reactor 40 corepack is the perfect companion for your hydraulically steered system.

Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.

Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.

You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.

Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.

Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience.

Plot your paradise.

COREPACK COMPATIBILITY

This corepack’s compact, brushless SmartPump fits most sailboats and powerboats with a hydraulically steered boating system. It requires a compatible Garmin chartplotter or GHC autopilot instrument.

SMARTPUMP V2

The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability and lower power consumption.

SOLID-STATE 9-AXIS AHRS

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.

REACTS TO WATER CONDITIONS

Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.

SIMPLE CALIBRATION

All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.

SHADOW DRIVE™ TECHNOLOGY

Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.

WIRELESS REMOTE CAPABILITIES

Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).



Connect to everything on your boat.

OPTIONAL GHC 50 BUNDLE

Combine the Reactor 40 corepack with the GHC 50 autopilot instrument to add a dedicated, touchscreen autopilot display to your helm. Plus, GHC 50 allows you to share data and settings with Garmin MFDs and other installed Garmin devices.

POWERBOAT AND SAILING FEATURES

When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately). You can even gain additional benefits such as the follow route and Auto Guidance+™ features1.


1Auto Guidance is for planning purposes only and does not replace safe navigation operations
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

Specs:

  • Dimensions (H x W x D): 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)
  • Weight: 16.5 lbs (7.5 kg)
  • Temperature range: From 5°F to 131°F (from -15°C to 55°C)
  • Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
  • Power cable length: 9 ft (2.7 m)
  • Power input: 11.5-30 Vdc
  • Fuse: 40 A, blade-type
  • Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
  • Flow rate: Configurable from 0 to 2.4 L per minute
  • Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

CCU Specifications

  • Dimensions: 3 19/32" diameter (91.4 mm)
  • Weight: 5.6 oz (159 g)
  • Temperature range: From 5°F to 131°F (from -15°C to 55°C)
  • Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
  • CCU cable length: 9.5 ft (3 m)
  • NMEA 2000 power input: 9-16 V
  • NMEA 2000 LEN: 3 (150 mA)

Buzzer/Alarm Specifications

  • Dimensions (L × Diameter): 29/32" × 1.0" (23 mm × 25 mm)
  • Weight: 2.4 oz (68 g)
  • Temperature range: from 5°F to 131°F (from -15°C to 55°C)
  • Cable length: 10 ft (3.0 m)
In the box:
  • SmartPump v2
  • Reactor 40 CCU (Course Computer Unit)
  • ECU (Electronic Control Unit) power cable
  • Interconnect cable
  • Shadow Drive
  • Buzzer
  • NMEA 2000® drop cable (2 meters)
  • NMEA 2000 power cable
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation



We recommend all products be installed by a licensed electrician or qualified technician. Proper installation ensures safety, performance, and protects your warranty.
